LINEAGE GROUND MASTER FRAMESET 20,5

DISPONIBLE EN  AOUT 2022

HIGHLIGHTS

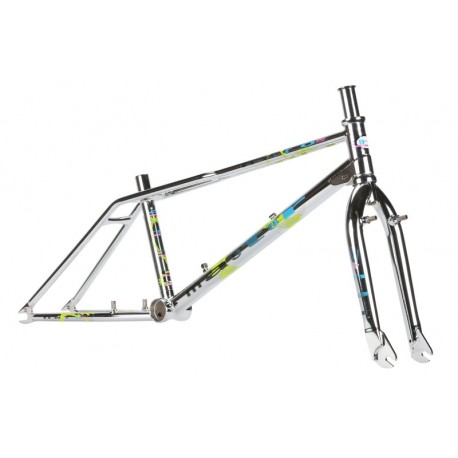

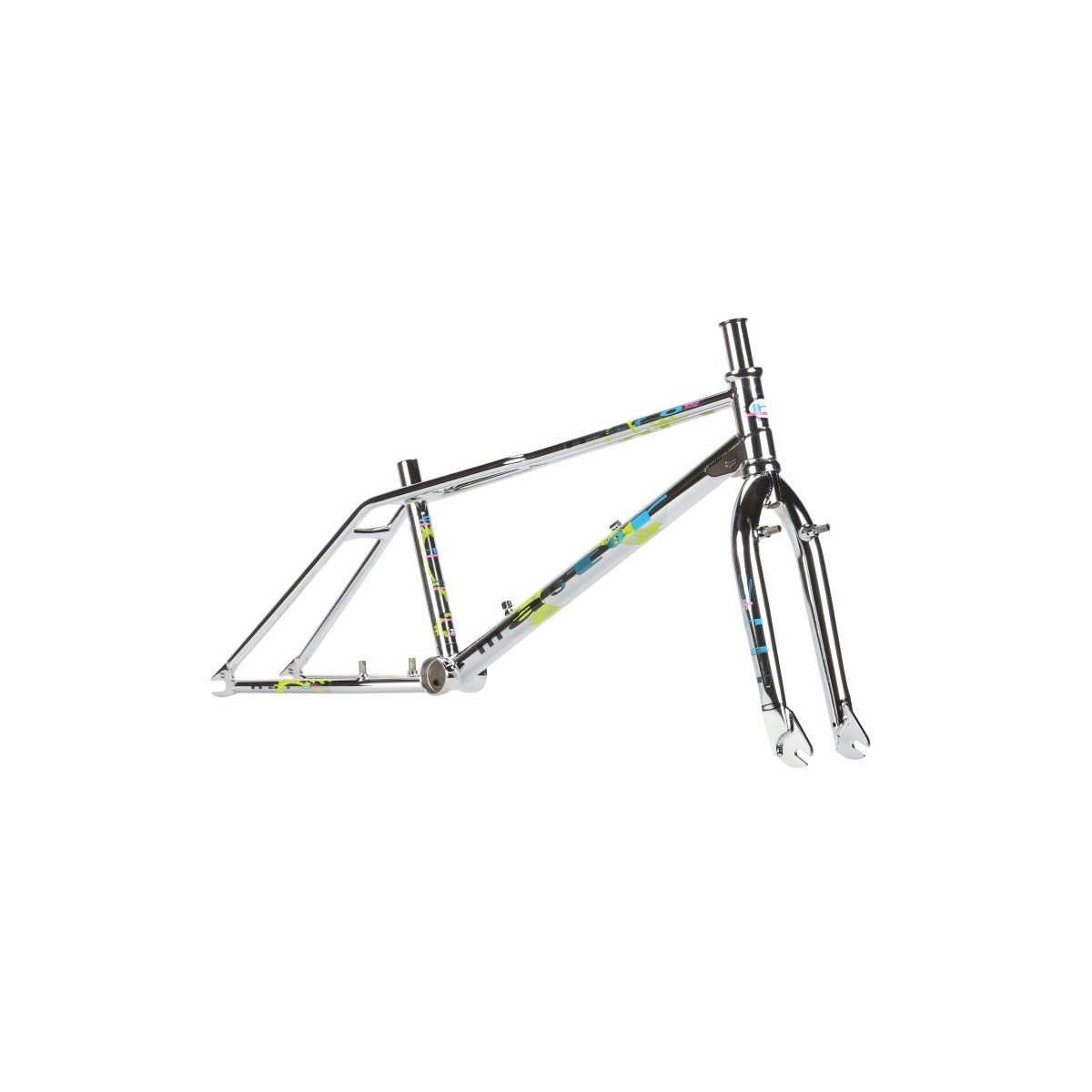

The Lineage Ground Master was created to take a strand or two of DNA from our past and thread it into the state of the art contemporary design of the present. Check out this masterpiece, at first glance it's hard to tell it's 30 years older than the original. Build your own Ground Master! You have the foundation with the Lineage Ground Master Frame Kit!

Available with a 19.5" or 20.5" top tube length. Please note that although this frame and fork is in the theme of the 1991 Haro Ground Master, it is a modern Lineage frame suitable for all types of freestyle BMX. Definitely not limited to Ground.

• 100% chromoly Lineage Ground Master frame with twin top tube, hour glass Mid BB shell, integrated head tube and Lineage dropouts - 19.5" or 20.5" top tube length
• 100% heat treated chromoly Lineage fork with CNC 1 piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing
• Mid BB
• 14mm dropouts on the frame, 10mm (3/8") on the fork
• 1" (25.4mm) seatpost
• brake mounts and gyro tabs included

Geometry

-19.5" or 20.5" top tubes
-74.5 degree head tube angle
-70 degree seat tube angle
-10.2" seat tube length
-13.7" chainstay length (to center)
-11.5" bottom bracket height
